IBC Heating Platform
The Heating platform for IBC is perfect for heating viscous or semi-solid products.
It can be useful for maintaining temperature even if the tank must be transported by truck or other means of transport.
The platform allows a uniform heat input from the bottom to the top to the IBC tank.
Made with a sheet metal, folded and painted, very resistant that does not suffer the weight of the plastic cistern and also the stress during the movements of the tank.

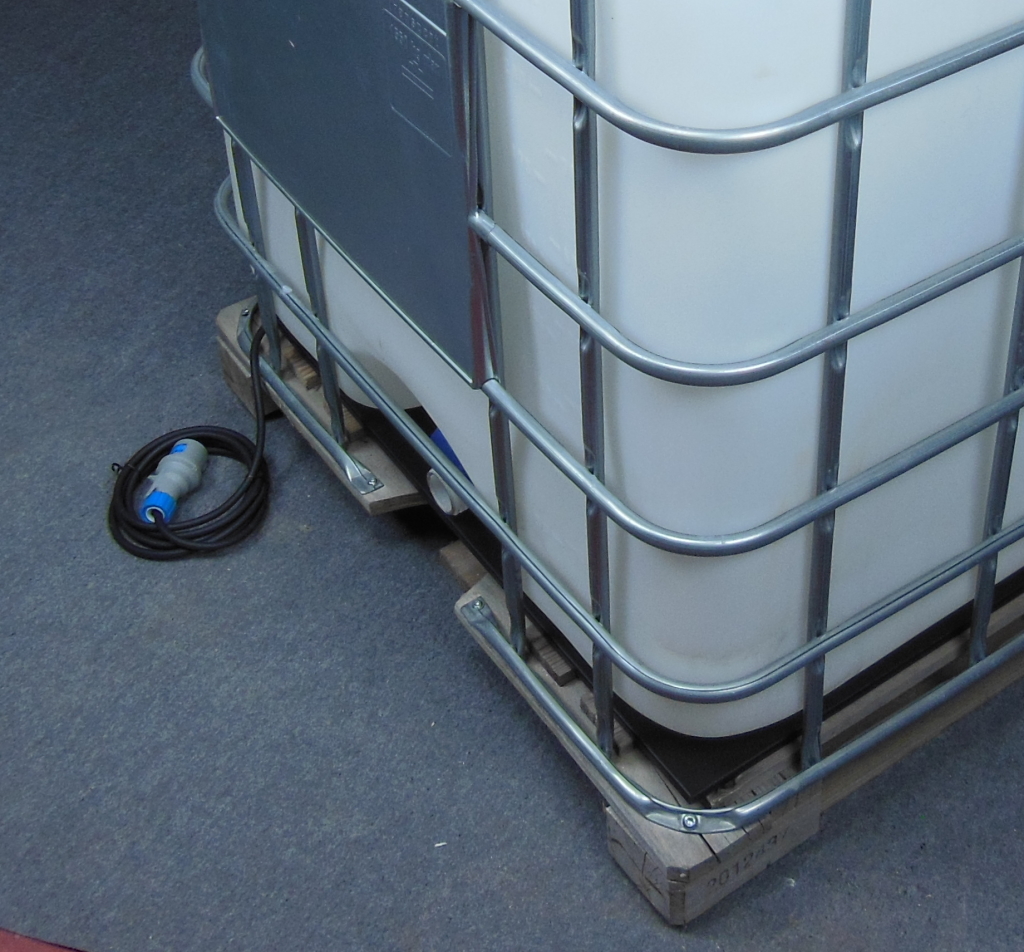

Easy to install and use. Simply remove the tank from the metal cage and lay the heating platform on the bottom, on the base of the tank.
The platform is equipped with a bimetallic thermostat inside which limits the maximum surface temperature to 60°C.
IBC Heating Platform
The Heating platform for IBC is perfect for heating viscous or semi-solid products.
It can be useful for maintaining temperature even if the tank must be transported by truck or other means of transport.
The platform allows a uniform heat input from the bottom to the top to the IBC tank.
Made with a sheet metal, folded and painted, very resistant that does not suffer the weight of the plastic cistern and also the stress during the movements of the tank.
Easy to install and use. Simply remove the tank from the metal cage and lay the heating platform on the bottom, on the base of the tank.
The platform is equipped with a bimetallic thermostat inside which limits the maximum surface temperature to 60°C.
Llama
EJEMPLOS DE INSTALACIONES
DATOS TÉCNICOS
- Power supply: 230Vac
- Power: 430W
- Dimensions: 91cm x 74cm
- Painted steel surface finishing
- Internal steel frame
- Internal insulating thickness 10 mm
- Internal thermostat at 60°C (limit of maximum temperature)
- Neoprene power cord,3m length with industrial plug IEC309
- Certification: CE
COD.
| CODE | DIMENSION | POWER | TEMPERATURE |
| PEFU.D | 91 cm x 74 cm | 430W | 60°C |
